Anchor Monument Sandblast Stencil products from IPG® provide superior blast resistance, precise and intricate design capabilities, clean transfers, smooth and accurate tracking. Request a Quote here.
Style 111 – For hand cutting.
Hand-cut, high quality, durable stencil coated with an advanced medium tack, rubber-based pressure-sensitive adhesive protected by an easy-release-treated HDPE liner. Designed for superior shape carving in marble and granite. Unique rubber formula allows easy cutting with less frequent knife sharpening. Controlled shrinkage gives accurate panel replacement after frosting. Recommended for maximum depth glass etching.
Style 113 Single Liner Stencil
Style 113 SINGLE LINER STENCIL (new) – in Friction Feed, Gerber 113S, and IBM 113T
Anchor’s new 113 series is the latest addition to their monument stencil offering and is available for hand cut, friction fed, slot and track fed plotters. Rubber-based, pressure-sensitive adhesive protected by a clear polyester liner. Available unpunched for hand cutting, and in punch configurations for Slot, Gerber and IBM plotters. Medium tack adhesive for a strong hold with an easy release. Available with rubber extending to the edge of the material to prevent slipping and for smoother tracking through high-speed cutters. Use for surface protection during etching and carving. Designed for use on polished marble and granite. Use with IPG®/Anchor Filler #211. Protection of polished granite or marble, primed/painted wood, and HDU foam board during sandblasting, etching and carving processes. Good for hardscape; sandblasting boulders. This is said to replace 3M’s 520 stencil.
Style 113 series
113 87091 15in x 10yd no punch AM1094
113 87095 25in x 10yd no punch AM1095
113 87096 30in x 10yd no punch AM1096
113S 87097 15in x 10yd Gerber slot AM1097
113S 87098 30in x 10yd Gerber slot AM1098
113S 87100 30in x 20yd Gerber slot AM1099
113T 87101 15in x 10yd IBM punch AM1100
113T 87104 25in x 10yd IBM punch AM1101
113T 87105 30in x 10yd IBM punch AM1102
116 SINGLE LINER HIGH TACK MEDIA BLAST STENCIL – MACHINE CUT
Machine-cut, high quality, durable stencil coated with an advanced, high tack, water-based acrylic pressure-sensitive adhesive protected by a clear polyester liner. Designed for slot-hole pattern Gerber® 15” and 30” plotters. The 15” widths will also track accurately in IBM® pattern and friction-fed cutters. 116 is designed and recommended for raw/unfinished hardwood, HDU foam-board, brick, and rough stone. Not intended for use on marble, granite, or polished surfaces.
PRODUCT APPLICATIONS
Water-based acrylic adhesive may transfer to pre-treated / painted surfaces or cause soft woods to splinter upon removal. 30” widths will only track on large pin plotter. Replacement for #125 in Gerber® plotters.
129Y COMPUTER STENCIL – this is now discontinued; we recommend to replace with 790YT
High quality, durable stencil coated with an advanced, medium tack, rubber-based pressure-sensitive adhesive protected by a clear PET liner. Designed for precision cutting IBM® pattern cutters. The slot-hole pattern will also accurately track through Gerber® 15” and friction-fed plotters. #129Y contains a yellow inner sheet of polyester which retains cut designs during liner removal. Recommended for single-process media blast carving of granite or marble.
PRODUCT APPLICATIONS
The 30” will not work on large pin computer cutters. Replaces 790Y in IBM® plotter applications.
ANCHOR GOLD DOUBLE LINER MEDIA BLAST
790Y ANCHOR GOLD DOUBLE LINER MEDIA BLAST STENCIL – HAND CUT
High quality, durable stencil coated with an advanced, medium tack, rubber-based pressure-sensitive adhesive protected by a clear PET liner. Contains a yellow inner sheet of polyester which retains cut designs during liner removal.
Single-process and double-process media blast carving of granite or marble.
790YS ANCHOR GOLD DOUBLE LINER MEDIA BLAST STENCIL – MACHINE CUT
High quality, durable stencil coated with an advanced, medium tack, rubber-based pressure-sensitive adhesive protected by a clear PET liner. The 15” width will track and process on both IBM® and Gerber® pattern cutters. The 30” width will fit only Gerber® #750 plotter machines. Tractor-feed holes are punched through liner and rubber. The specially treated polyester liner retains cut designs during transfer from plotter to stone.
Single-process and double-process media blast carving of granite or marble. Replaces #790Y in Gerber® plotter applications.
790YT ANCHOR GOLD DOUBLE LINER MEDIA BLAST STENCIL – MACHINE CUT
High quality, durable stencil coated with an advanced, medium tack, rubber-based pressure-sensitive adhesive protected by a clear PET liner. Half inch on center hole pattern designed for IBM® sprockets. Tractor-feed holes are punched through liner and rubber. The specially treated polyester liner retains cut designs during transfer from plotter to stone.
Single-process and double-process media blast carving of granite or marble. Replaces #790Y in IBM® cutter applications.
Anchor’s MEDIA BLAST STENCIL BROCHURE
Anchor Sandblast Stencil Tech Sheets:
111 Anchor hand-cut stencil technical data sheet
113 Anchor single liner Friction Feed-Hand stencil MEDIUM Tack technical data sheet
113S Anchor single liner Gerber stencil MEDIUM Tack technical data sheet
113T Anchor single liner IBM stencil MEDIUM Tack technical data sheet
116-Anchor High Tack stencil technical data sheet
790Y-Anchor Hand Cut stencil technical data sheet
790YS-Anchor Gerber stencil technical data sheet
790YT-Anchor IBM stencil technical data sheet
791YT-Anchor Precision stencil technical data sheet
To request an Anchor sandblast stencil quote or for additional information about Anchor stencil products, please request a quote or contact us at Miles Supply today.
Intertape style codes changed a few years ago, see older blog for more info and compatibility.

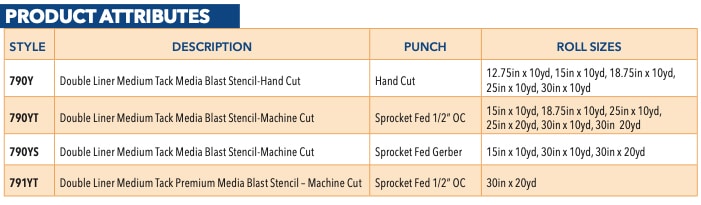

STYLE DESCRIPTIONS
111 Designed specifically for hand-cutting; panels can be replaced accurately and easily; superior shape carving; easier cutting means less wear on instruments; white release liner removes easily; use with IPG®/Anchor® Filler #211.
113 The introduction of 113 monument stencil fills a hole that has existed in Anchor’s line for the last several years. They now have a medium thickness, single liner product with all the available punch systems. Anchor’s 113 series is available for hand cut, friction fed, slot and track fed plotters.
116 A high-tack computer stencil for use on raw wood surfaces and urethane foam board; the 15” features trimmed edges and a strong, clear film liner that offers easy alignment and smooth, precise running on computerized sign-making machines; the 30” width tracks only on large pin plotters and the
stencil rubber extends to the edge of the liner.
CAUTION: Style 116 has a very aggressive adhesive and is not recommended for use on some woods without first testing a sample piece; do not use on pre-painted, pretreated or glass surfaces.
117 Designed for use with computerized cutting machines; trimmed edges on 15” roll allows smooth and easy tracking through the machine; a strong, clear film liner provides extra rigidity; the 15” width will track through most computer cutters. The 30” width will track only through a large pin plotter and the stencil rubber extends to the edge of the liner. After letters and designs are cut, they must be taped (recommendation: IPG 6100LPT) for transferring the stencil to stone; use with IPG/Anchor Filler #211.
790Y Unpunched. Designed for hand cutting and less wear on cutting dies; excellent blast resistance and easy-to-recognize gold liner. Plastic sheet laminated to the stencil eliminates taping to stone and allows easy blast-through; fast cleanup. Product has a yellow poly film between adhesive and rubber to identify any residue remaining after media blast; use with IPG/Anchor Filler #223 and #333.
790YS Sprocket Fed Gerber Punch. Same construction as 790Y. Designed for holding in place while transferring computer to die. Holes are punched through liner and rubber for Gerber® pattern cutters; use with IPG/Anchor Filler #223 and #333.
Note: 30” will work with large pin 30” plotters
790YT Sprocket Fed 1/2” OC Punch. Same construction as 790Y. Designed for holding in place while transferring computer to die. Holes are punched through liner and rubber; holes are IBM® configuration (½” from center of hole to center of next hole); compatible with most computerized cutting machine with sprockets matching this alignment; use with IPG/Anchor Filler #223 and #333.
791YT Sprocket Fed 1/2” OC Punch. Premium construction media blast stencil. Designed for use on most computer cutters; this product has a clear polyester film liner; product has a yellow polyester film between adhesive and rubber to hold centers in place while transferring designs and to identify any
residue remaining after media blast. Holes are punched through liner and rubber; holes are IBM® configuration (½” from center of hole to center of next hole); compatible with most computerized cutting machines with sprockets matching this alignment; use with IPG/Anchor Filler #223 and #333.
