Pump 3700i API 610 (OH2) Single-Stage, Overhung Process Pump. Goulds Pump model 3700i API 610 (OH2) 12th Ed. single stage, radially split, and centerlined mounted process pump designed for optimum reliability. The Goulds 3700i employs state-of-the-art mechanical design features for sustained reliability and performance.

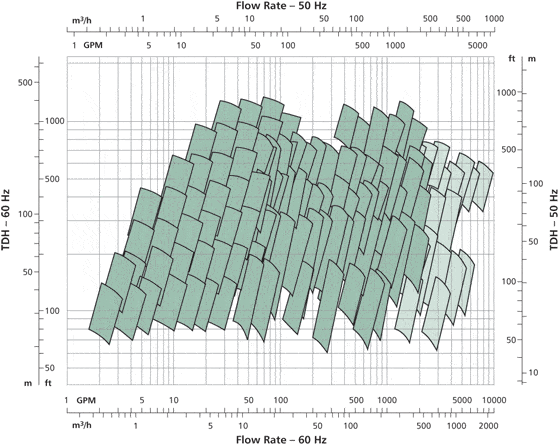

• -Capacities to 8500 GPM (1930 m3/h)
  -Heads to 1200 feet (360 m)
  -Temperatures to 800° F (425° C)
  -Pressures 870 PSIG (60 Bar)
  -Standard Features for Optimum Reliability
  –Proven API 610 Nozzle-Load Design
  —Rugged casing and baseplate/pedestal support system provides flange-loading capability exceeding API 610 requirements without the use of a bearing frame support.
  –Full Flange Rating Pressure Capability
  —All pumps designed to operate at two pole running speeds have casings designed for the full pressure capability of a 300 RF flange.
  –Spiral-Wound Casing Gasket
  —Casing to cover joint sealed with a spiral-wound, controlled-compression gasket required by API 610. Provides positive sealing up to the maximum design pressure and temperature.
  –Improved Bearing Environment
  —Innovative bearing frame design provides optimum heat
  dissipation.
  —Condition-monitoring sites allow easy and consistent
  monitoring of temperature and vibration. Provision
  for instrumentation mounting per API 670 standard.
  —Large oil sight glass allows viewing of the condition
  and level of oil, critical for bearing life.
  —Extra-large oil sump means cooler-running bearings.
  —Proven channeled oil lubrication system ensures
  flow-through of cooled oil to thrust and radial bearings.
  —Oil Filter keeps the oil free of debris and moisture
  —Standard dual oil rings, positively located, provide oil
  flow to channeled oil lubrication system and prevent
  oil foaming.
